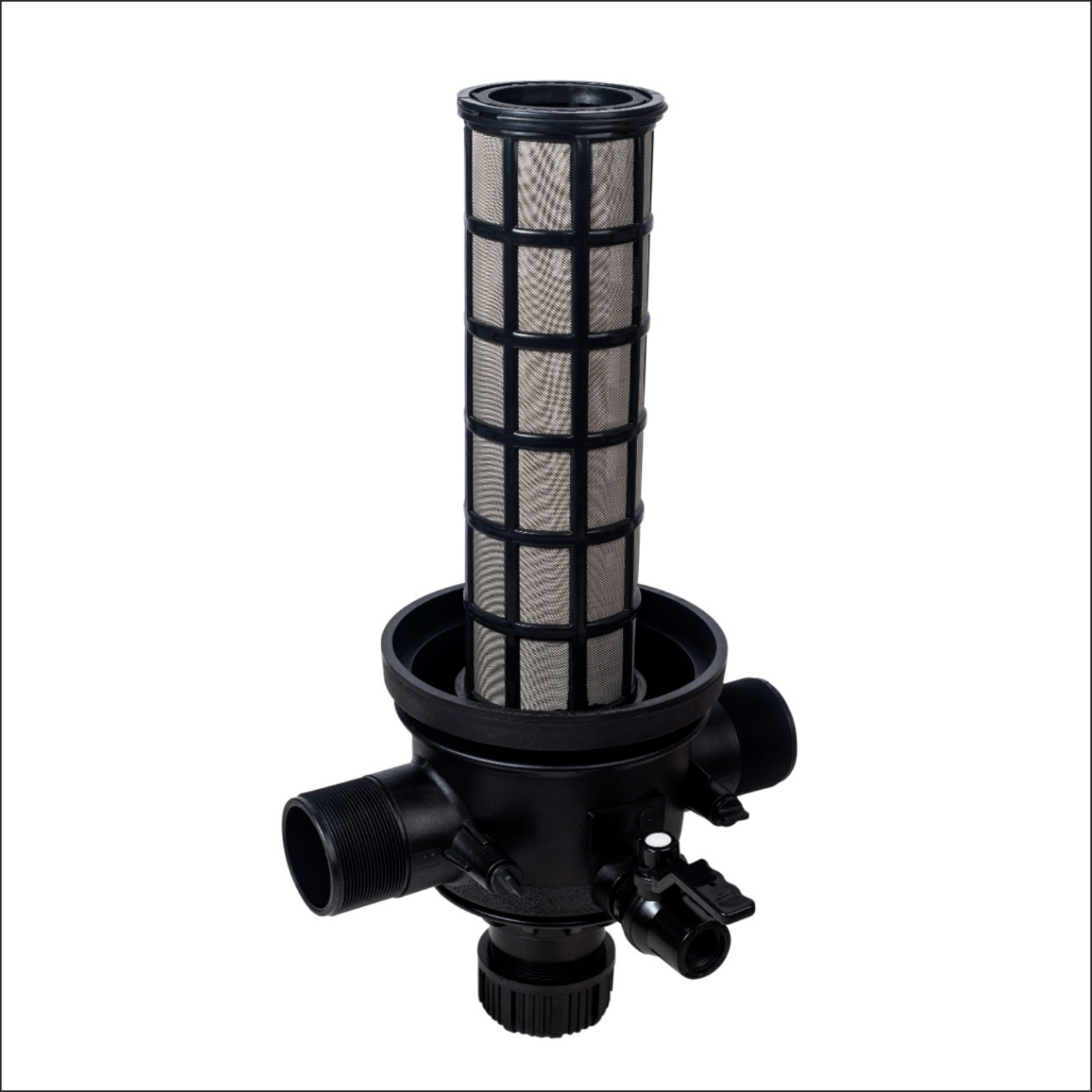

Screen Filter

General Specifications

Body Material: Typically constructed from high-impact, weather-resistant polymers or glass-filled polypropylene for durability and corrosion resistance.
Filtering Cartridge: Features a screen, often made of stainless steel (like SS-316 mesh), designed for easy cleaning.
Filtration Degree: Commonly available in 120 mesh (equivalent to approximately 130 microns) for filtering out fine physical contaminants and debris. Other mesh sizes like 80 and 150 are also available.
Max. Operating Pressure: Varies by model, but commonly designed to handle pressures up to 6 kg/cm² (around 85 psi) or even up to 10 kg/cm² (around 142 psi) in some industrial models.
Flow Rate: A wide range of flow rates are available, from approximately 20 m³/hr for smaller models to over 120 m³/hr for larger, industrial "jumbo size" versions.
Connection Size: 2 INCH 30 𝒎𝟑/ hr,2.5 INCH 30 𝒎𝟑/ hr,2.5 INCH 40 𝒎𝟑/ hr,3 INCH 50 𝒎𝟑/ hr
Application: Primarily used in drip irrigation, garden lawns, swimming pools, rainwater harvesting, and industrial water filtration systems to prevent clogging and protect fixtures.
