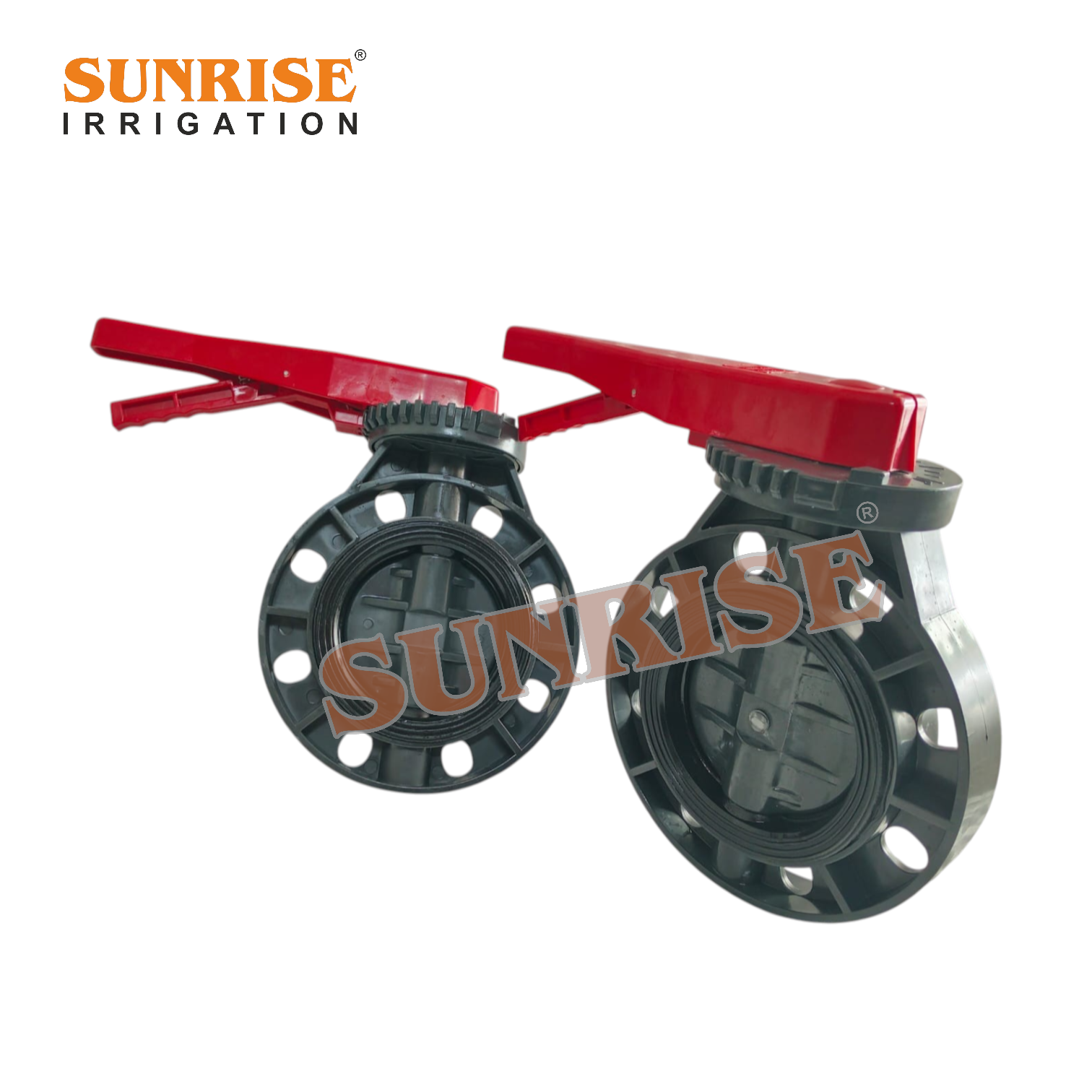

Pvc Butter Fly Valve

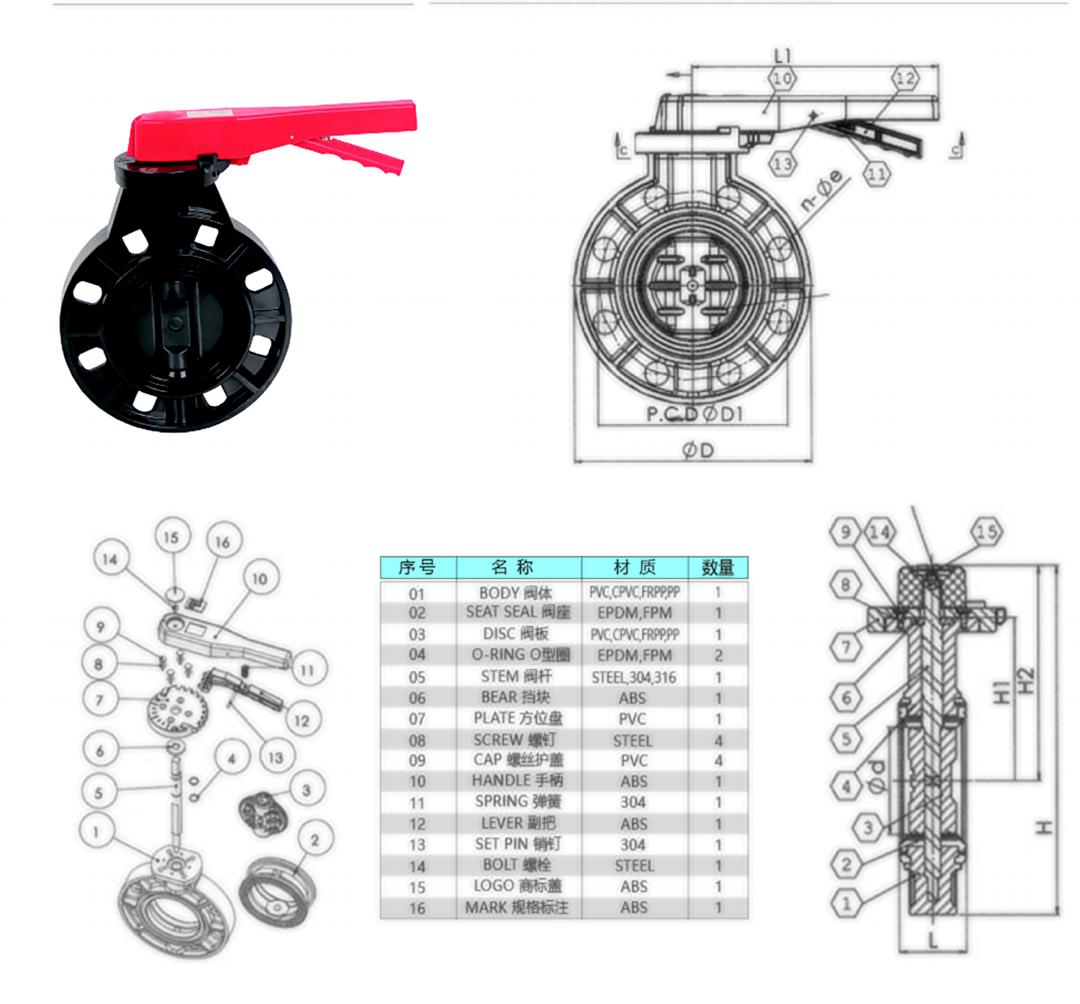

General Technical Specifications

Size Range: Typically available from 2" to 10" (DN50 to DN300) as standard,
Pressure Rating: Most are rated for 150 PSI (10 Bar) at 73°F (23°C). Pressure ratings often decrease as size increases (e.g., 10"-12" may be rated for 100 PSI).
Temperature Range: Generally 32°F to 140°F (0°C to 60°C).
Connection Standards:
- Wafer Style: Designed to be sandwiched between flanges.
- Flange Patterns: Compatible with ANSI B16.5 Class 150, DIN PN10, and JIS 10K.
