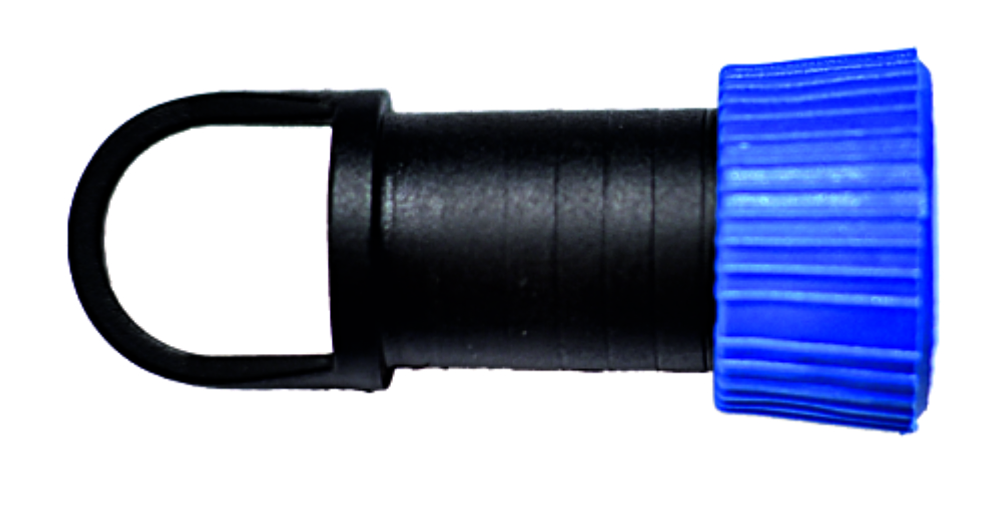

Drip Pepsi End cap

Key Specifications

Specification	Detail
Diameter	16 mm (most common), also available in 20 mm.
Material	High-density polyethylene (HDPE) plastic, polypropylene (PP), or ABS plastic.
Application	Sealing the ends of main or sub-main drip irrigation lines in agriculture, gardens, and nurseries.
Connection Type	Generally features a barbed, push-fit design for a secure, leak-proof seal without special tools.
Pressure Rating	Typically recommended for operating pressures up to 50 PSI (approx. 2-3.5 bar).
Durability	UV-resistant and chemical/corrosion-resistant for long-term outdoor use.

Design and Usage

Function: The primary purpose is to stop the flow of water through the end of the supply hose, which is vital for enabling pressure to build up correctly within the entire drip irrigation system.
Installation: The tubing is pushed firmly over the barbed side of the end cap for a tight, reliable connection. Softening the tubing in the sun or with a blow dryer can ease installation.
Compatibility: They are designed for universal compatibility with standard 16mm outer diameter drip irrigation tubing or flat drip lines.
