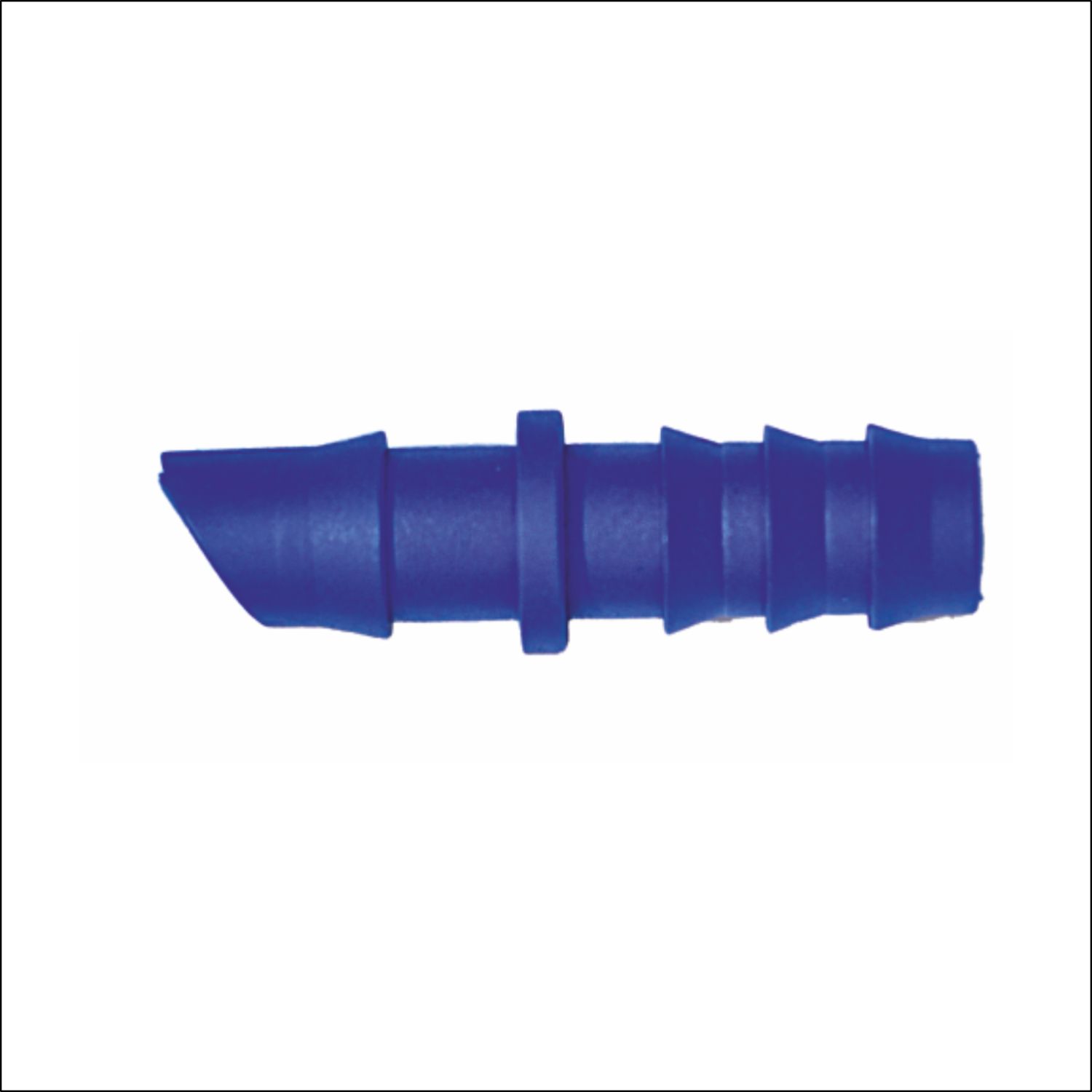

Drip Neta Takeoff

Core Specifications

Sizes Available: Standard diameters include 12mm, 16mm, to match common lateral tubing.
Material: Typically manufactured from non-toxic, UV-stabilized polymers like LDPE (Low-Density Polyethylene) or PP (Polypropylene) to resist sunlight and chemical wear.
Fitting Type: Features a barbed design (often double barbs) for a secure, leak-proof, push-fit connection without the need for tools or clamps.
Operating Pressure: Generally rated for 1–4 Bar, though the optimal system pressure is often around 1 kg/cm² (approx. 1 Bar).
Flow Rate Support: Compatible with emitters ranging from 2 to 16 LPH (Litres Per Hour) depending on the overall system design.
Installation Requirement: Usually requires a hole drilled into the mainline pipe (using a 16mm or 20mm drill bit) and is often paired with a rubber grommet to ensure a tight seal.
